|DisplayPort Standard||Big DisplayPort 1.4|
|Signal Source Input||DP 1,DP 2,DP 3 for Signal Input,Female Port|
|Signal Display Output||1xDP For Video Output,Female Port|
3 Port DisplayPort Bi-directional 144Hz DP 1.4 Switch

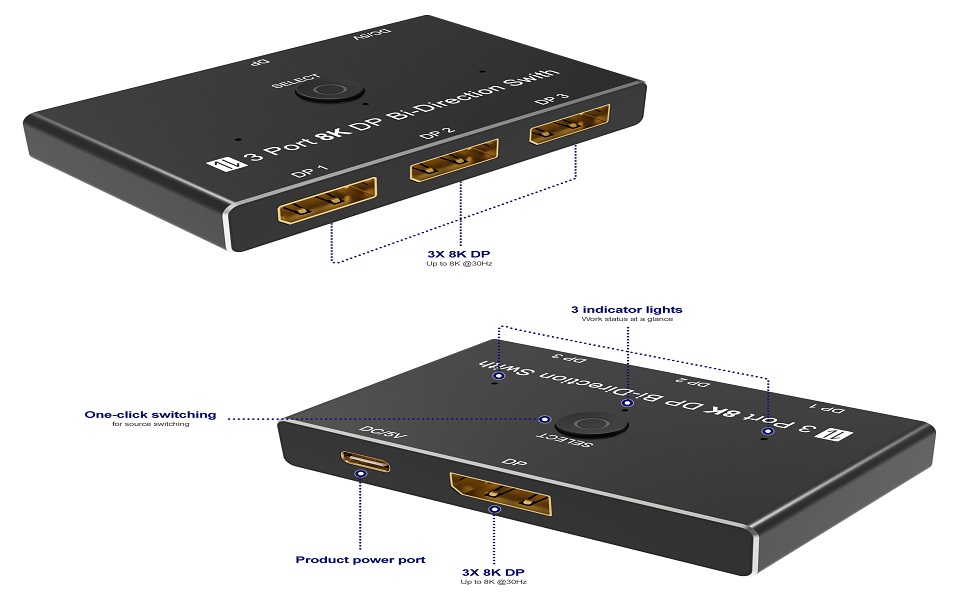

DisplayPort 8K 3In 1Out 1In 3out Switch
8K DP 1.4 Switch: Support 8K@30Hz, 4K@120Hz, 1080P@240Hz resolution, provide you with transfer rates up to 32.4Gbps and backward compatible with all previous DP standards.(You need connect standard DP 1.4 cable to enjoy visual effects)
DisplayPort 8K Switch/Converter,Three PC sharing one Monitor,easily switching between three Source Input Devices,Various Connection Method
Provide different connection methods for your different devices,One PC connecting to Three DP Monitors(Switch between three Monitors)
This DisplayPort 1.4 Bi-directional Switch provide a connection from three of your PCs to one of your DisplayPort Monitors.
You can connect with following methods:
If your PC with DisplayPort Interface,directly plug a DP to DP Cable from your PC to our switch,you can also/if your Laptop with Mini DisplayPort Interface,plug a mini dp to dp cable from your pc to our switch/if your laptop with USB-C port,plug a USB-C to dp cable from your PC to our switch/if your laptop with HDMI interface,plug a HDMI to DP cable from your pc to our switch.Then plug connect a DP to dp cable from our switch to your monitor.
Also you can connect from one DisplayPort PC to three DisplayPort Monitors.From your PC to our switcher,you can connect DP to DP Cabler,you can also use USB-C to DP,Mini dp to dp or HDMI to DP cable.
This switcher provides different connection methods for your different devices, and finally, you can achieve 3 computers to share one monitor, and you can easily switch between 3 computers freely by pressing buttons.And it can also enables one of your PC to connect to three of your DP Monitors(Note,three monitors can not show the same time,you need to press"select"button to switch between your three hdmi output screens)

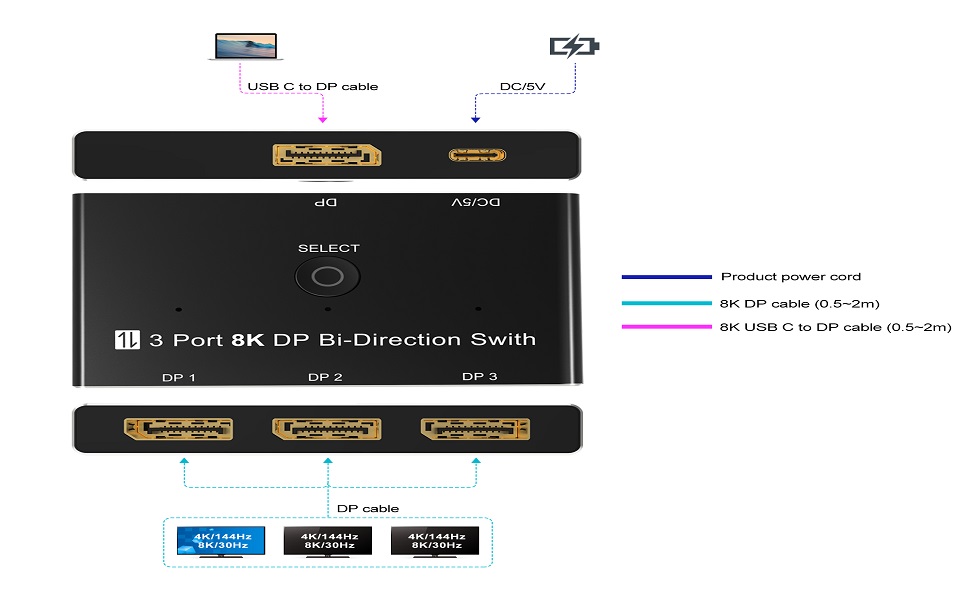

Important Notes while using this DP 1.3 3x1 Switch
1.Switch one PC, display shows one PC content; 2.Switch other PC, display shows the other PC content 3.One PC is 8K and the other is 4K, then the display is only 4K, means the display depends on the lower one
4:While using the switch,please power it via our supplied USB-C cable.
5:Cable Length Limit if you would like to make the Switch work normally
a:If you connect from the PC to your switch via DP to dp cable,and then connect from the switch to your Monitor via dp to dp cable,you cable length should be 0.5-3m
b:If you connect from your pc to your switch via USB-C to dp or mini dp to dp cable,and then from the switch to your monitor vla dp to dp cable,both of your cables should be 0.5-2m
